Description
iM3 Vet Clarity DR Size 4
Size 4 DR Sensor – 20 lp/mm – Wide Dynamic Range
The iM3 Vet Clarity DR Size 4 represents a significant leap in size for veterinary dentistry when compared to its predecessors, now matching the dimensions of a size 4 CR plate at 53.8 x 77.1 x 6.5 mm. This enlargement allows for a broader and more comprehensive area of imaging, capturing detailed dental structures with greater precision.
The increased size enhances its versatility, accommodating a wider range of animal patients and facilitating efficient diagnoses. This is what veterinary dentists have dreamed of and now iM3 is bringing it to the market.
The total cable length is approximately 3.1 meters, with 2.0 meters from the USB connector to the control box and 1.0 meter from the control box to the sensor.
High Resolution – 20 lp/mm!

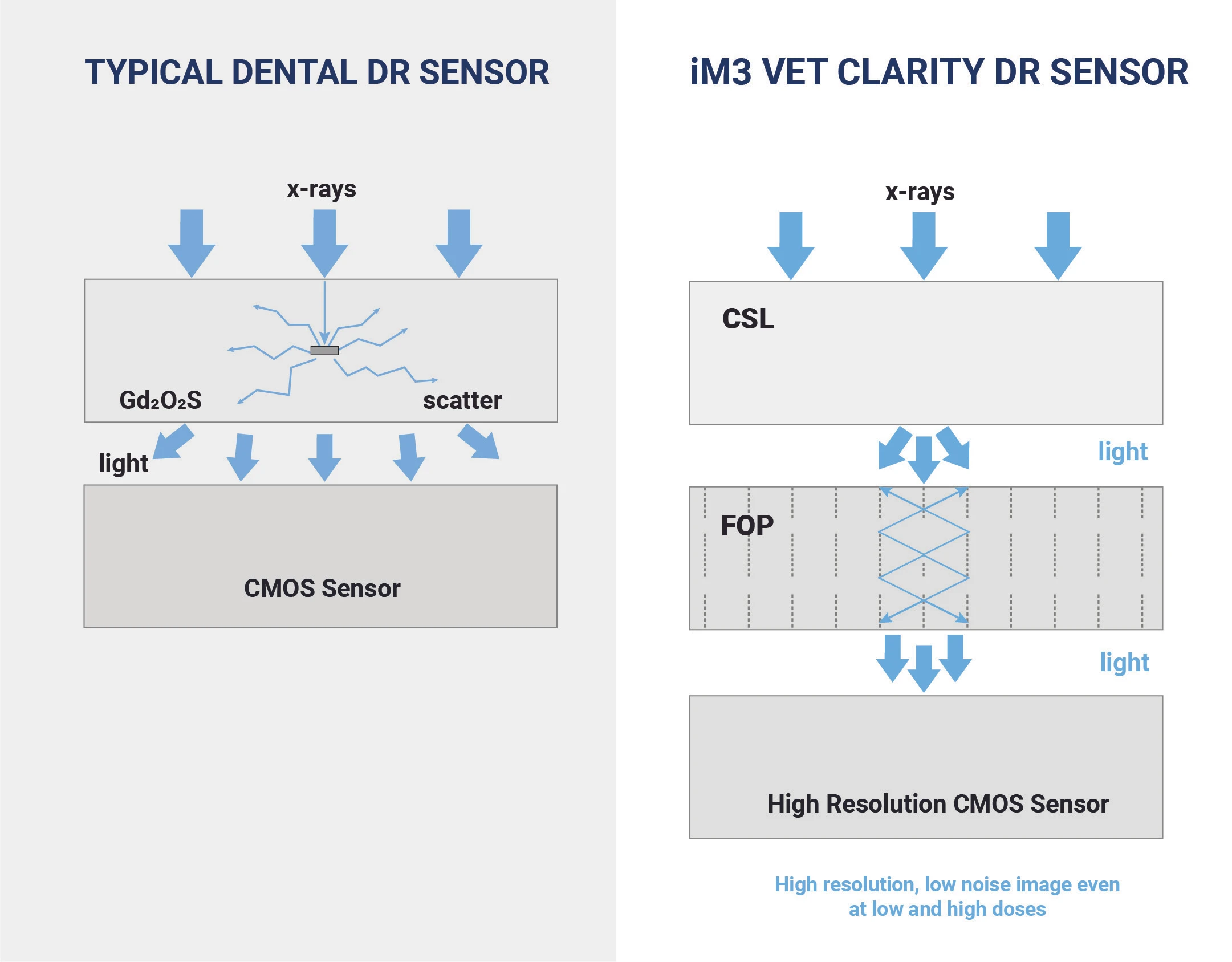

The iM3 Vet Clarity DR Size 4 makes use of a CsI (caesium iodide) scintillator as opposed to the more common Gadox-based sensors, resulting in far higher resolution and less noise.
With an impressive resolution of 20 lp/mm (line pairs per millimeter), it outperforms the typical 12 lp/mm resolution found in conventional sensors. This heightened level of detail and clarity in the captured images allows for more accurate and comprehensive evaluations of dental pathology.
Wide Dynamic Range!
The iM3 Vet Clarity DR Size 4 has built-in WDR (Wide Dynamic Range). The wider the dynamic range, the better the sensor can read at both high and low doses of X-ray exposure. As a result, the iM3 Vet Clarity DR Size 4 is very forgiving and can produce clear, sharp images even in challenging conditions.
The Perfect Addition!
Compatible with ClarityXR, the iM3 Vet Clarity DR Size 4 is a perfect addition for users of the iM3 CR 7 or CR 8, or the iM3 Vet Clarity DR Size 2. The iM3 Vet Clarity DR Size 4 includes ClarityXR X-Ray Software*.
*base software only – does not include modules or maintenance fee & updates
In addition, the iM3 Vet Clarity DR Size 4 is packaged with TWAIN drivers. This flexibility allows veterinary professionals to utilise their preferred imaging software, providing them with greater control and customisation options for their dental radiography workflow. By being compatible with a wide range of TWAIN-supported programs, the sensor ensures a smooth and efficient integration process, eliminating the need for additional software installations and simplifying the overall imaging setup. Veterinarians can confidently embrace this adaptable solution, enhancing their diagnostic capabilities while maintaining the convenience of their chosen dental X-ray imaging software.
Testimonial – iM3 Vet Clarity DR Size 4
“I have used the size 4 direct X-ray sensor in the treatment of multiple bears. The sensor provides very quick images in high resolution.
So if you are doing dentistry on large animals, everything from large dogs to big bears, tigers and lions, this system is a “must-have”, especially if you work in the field or out-bush in extreme conditions.”
Jens Ruhnau, DVM, Dipl.EVDC
September 2024
These X-rays were captured using the iM3 Vet Clarity DR Size 4 on Norman, the Multi-Procedure Canine Dental Model.
Required with every order
XDR400 + CXR002 Clarity XR Software + CXR101 Maintenance and updates*
*CXR101 is an annual fee of $200, paid upfront and renewed each year.
